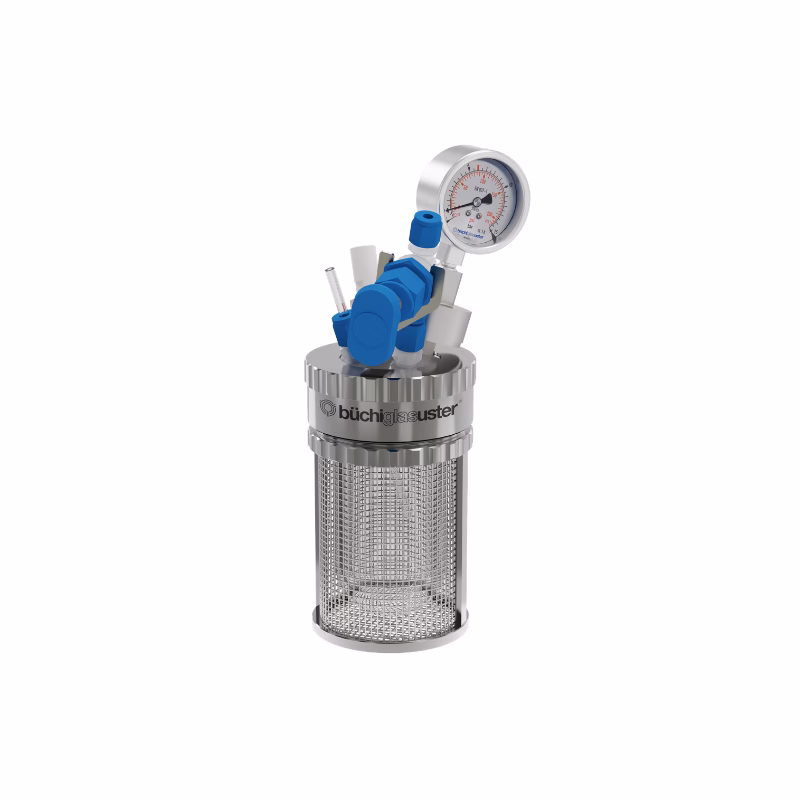

miniclave steel – small pressure reactor


miniclave steel – small pressure reactor

miniclave steel – small pressure reactor

  • Reactor volume: 100 to 300 ml
  • Pressure: -1 (FV) to +10 bar / 100 bar
  • Temperature: -20 °C to +200 / 300 °C
  • Material: Borosilicate glass 3.3, stainless steel, Hastelloy®, PTFE

Other materials, pressures & temperatures are available

The Buchiglas miniclave steel pressure reactor system is designed for the use of interchangeable pressure vessels in glass, steel, Hastelloy®, Teflon. Safety features guarantee safe reactions under pressure.

The glass pressure reactors in the miniclave steel ensure high resistance against acids, while allowing visual process control and monitoring.

A wide range of accessories is available – talk to us to define the right setup for your specific need.


Standard miniclave steel package

  • Vessel holder with protective mesh
  • Glass pressure vessel
  • Union nut
  • Cover plate with 4 openings and standard setup
  • Swagelok fittings with bursting disc, manometer, 1 valve and Pt100
  • Tools and spare parts


Small-pressure reactor applications

  • Hydrogenation reactor
  • Polymerization reactor
  • Synthesis reactor
  • Catalyst testing/evaluation
  • Catalytic reactor
  • Corrosion measurement
  • Crystallization
  • Chemical research
  • Petrochemical research
  • Biopolymer Research
  • Nanoparticle synthesis
  • Corrosion testing autoclave

Download the Buchiglas Product Overview Brochure
