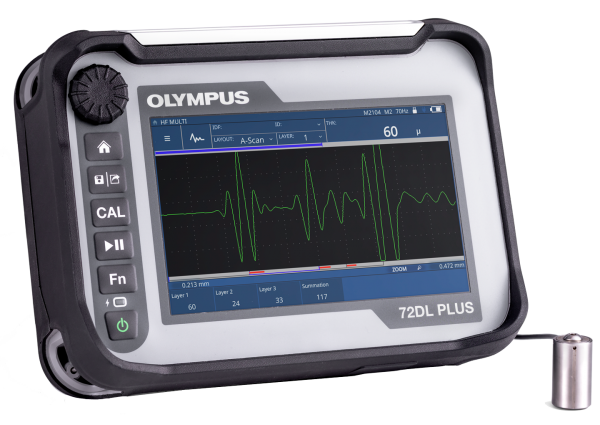

72DL PLUS Ultrasonic Thickness Gauge

Evident Industrial Solutions (formerly Olympus)

72DL PLUS Ultrasonic Thickness Gauge

The Evident 72DL PLUS™ ultrasonic thickness gauge delivers precision thickness measurements at high speed in a portable, easy-to-use device. With fast scanning, advanced algorithms, and our lowest-ever minimum thickness capability, you can confidently measure the thickness of very thin layers in the most challenging applications.

72DL PLUS thickness gauges are available in Standard Frequency and High-Frequency models. The High-Frequency model can measure ultra-thin materials, including multilayer paint, plastics, metals, and coatings, and the Multilayer Measurement Software can simultaneously display the thickness of up to six independent layers. All 72DL PLUS models have the features to perform fast, accurate thickness measurements:

  • Digital filters enable an excellent signal-to-noise ratio to accurately measure noisy materials (e.g., fiberglass)
  • High-resolution touch screen is easy to use and see from various angles
  • PC Interface Application integrates your workflow, inspection management, alerts, and data analysis



72DL PLUS features

  • Rugged: designed for IP65
  • Large, clear screen: 177.8 mm (7 in.) high-resolution touch screen WVGA display
  • Versatile layouts: A-Scan, B-Scan, A/B-Scan, Trend, and Zoom measurement layouts provide an accurate picture of thickness changes
  • Customizable: Standard Frequency model and High frequency model with Multilayer Measurement software to simultaneously measure thickness of up to 6 layers
  • Guided Inspection: Interactive part map with thickness measurement locations (TMLs) show a quick view of the inspection status and quality
  • Long battery life: up to 8 continuous hours
  • Efficient data management: internal data logging and PC Interface Application speed up data collection and review
  • Connected: supports wireless LAN
  • Cloud enabled: wireless connection to the Olympus Scientific Cloud™ (OSC) and compatible OSC apps
  • Easy application setup: create custom applications to reduce device setup time for routine inspections



An Ultrasonic Thickness Gauge Built for Industrial Environments

  • Designed for IP65 to protect against dust and moisture
  • Drop tested (MIL-STD-810G) to protect against falls and reduce the need for costly repairs
  • Takes reliable measurements in a wide operating temperature range of –10°C to 50°C (14°F to 122°F)
  • Portable for the production floor, weighing 2.1 kg (4.6 lb)
  • Easy to control from the touch screen, key controls, and adjustment knob
  • Can be used indoors and outdoors, on a work surface, or using a four-point chest harness or shoulder strap
