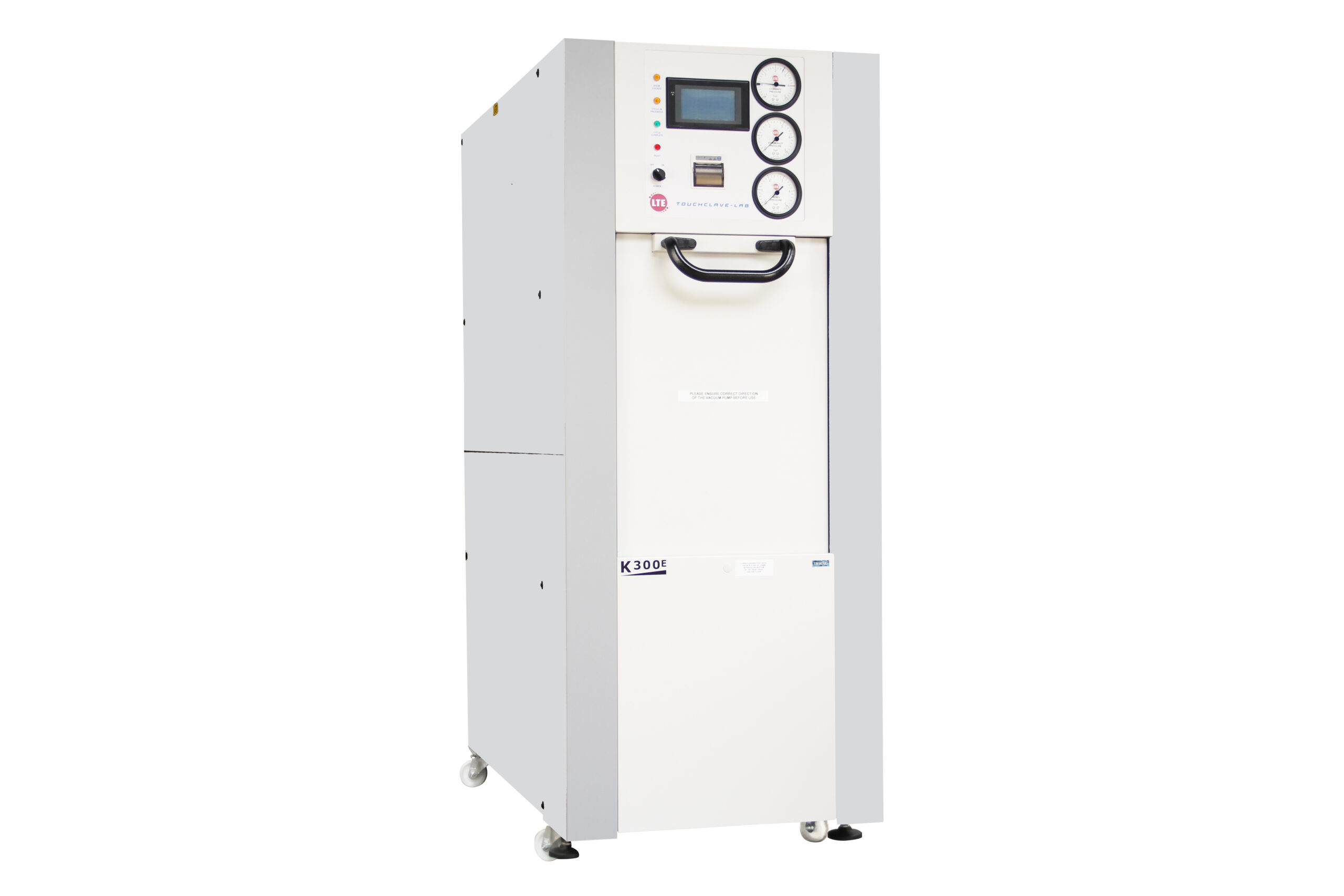

The Touchclave-Lab K Rectangular Series
The Touchclave-Lab K Rectangular Series is LTE’s top-line range of mid-sized rectangular chambered general purpose autoclaves which can be configured to process the widest range of loads.
Designed with a rectangular chamber and vertical sliding door, Touchclave-Lab K models offer maximum loading efficiency with a high level of standard features. Operated via a 7″ touchscreen interface, Touchclave-Lab autoclaves are easy to use and offer unrivalled versatility. The Touchclave-K can operate using either a steam generator beneath the chamber or using your own direct steam supply.
Using a direct steam supply allows you to maximise the usable chamber volume while also providing a clean, unencumbered chamber. The autoclave offers built in safety features including a safety microswitch fitted to the door. Which only allows the steriliser cycle to start if the door is properly closed and locked. Additionally the door cannot be opened until the chamber has reached atmospheric pressure and temperature.
Touchclave-Lab K Key Features
- Capacities: 150, 200, 300, 360 and 450 litres
- Pass-Through: Available on 300, 360 and 450 litre models
- Chamber Section: Rectangular
- Loading: Front
- Temperatures: 105 – 137°C”
- Anti-Bacterial Epoxy Powder Coating
- Steam Generator or Direct Steam Heating
- 8 Program Touchscreen Control System
- Internal Data Archiving
- Load Sensed Process Timer
- Exhaust Condensate Unit
- Water Jacket Cooling System
- Pneumatically Operated Door Lock and Sealing System
- Integral Silent Air Compressor
