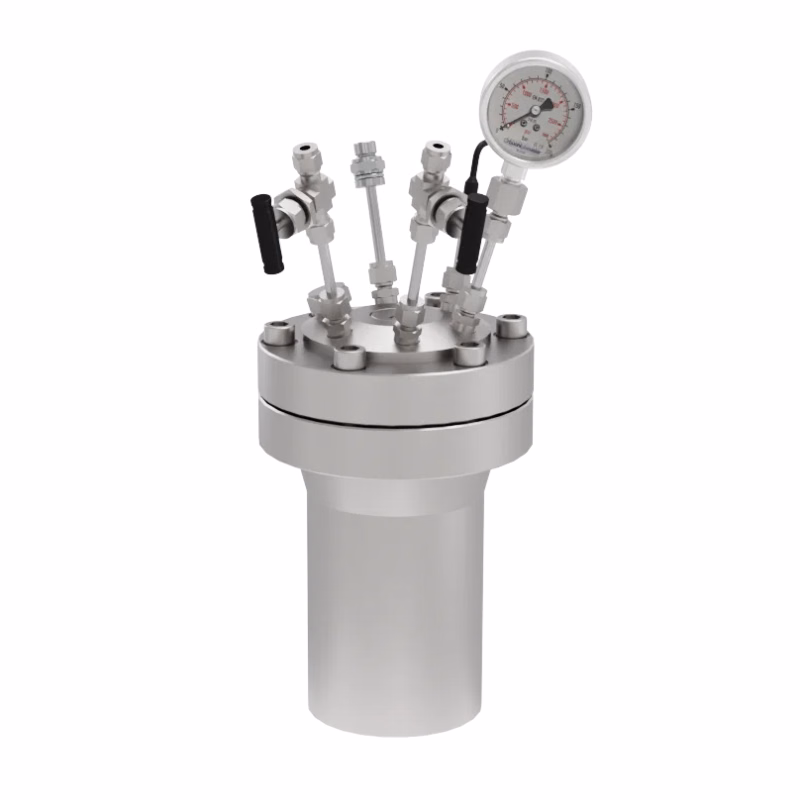

maxiclave® Laboratory Pressure Reactor

The Büchiglas maxiclave® Laboratory Pressure Reactor is a versatile solution for high-pressure and high-temperature research applications. Available through Mason Technology, a trusted Irish supplier of Büchiglas laboratory equipment, this reactor offers flexibility, reliability and performance for demanding scientific environments. Designed for chemical research and process development, the maxiclave® supports pressures up to 200 bar and temperatures up to 300°C. Furthermore, its interchangeable 0.5 and 1.0 litre vessels allow researchers to adapt the system to different experimental requirements.

The maxiclave® is available in two configurations to suit specific research needs. The standard maxiclave® provides a non-stirred option, while the maxiclave® drive incorporates a cyclone 075 dc magnetic stirrer. Both versions offer flexibility for applications such as hydrogenation, catalyst testing, polymerisation and material research. As a result, laboratories can conduct a wide range of experiments using a compact and adaptable pressure reactor system.

Büchiglas maxiclave® Laboratory Pressure Reactor Key Features

• Two reactor configurations: Choose between the non-stirred maxiclave® and stirred maxiclave® drive for different research requirements.
• Interchangeable vessel capacities: Available in 0.5 and 1.0 litre sizes, providing flexibility for various experimental volumes.
• High-pressure operation: Supports pressures from full vacuum (-1 bar) up to 200 bar for demanding laboratory reactions.
• Wide temperature range: Operates between -10°C and +300°C for high-temperature and pressure applications.
• Magnetic stirring: The maxiclave® drive features a cyclone 075 dc magnetic stirrer drive with 75 Ncm torque.
• Durable reactor materials: Stainless steel construction with optional Hastelloy® for additional chemical resistance.
• Optional PTFE insert: Improves corrosion resistance when working with aggressive chemical substances.
• Optional ergonomic stand: Allows easier handling of the reactor vessel and cover plate.
• Flexible heating methods: Compatible with laboratory hot plates, bath thermostats and electric heating sleeves.
• Broad research applications: Suitable for chemical synthesis, catalyst evaluation, crystallisation, polymerisation and supercritical fluid research.

Enhance your laboratory research capabilities with the Büchiglas maxiclave® Laboratory Pressure Reactor, available from Mason Technology. Whether you are conducting chemical synthesis, evaluating new catalysts or developing experimental processes, our team can help you select the most suitable configuration. As a trusted supplier of Büchiglas laboratory equipment in Ireland, Mason Technology provides access to advanced solutions for scientific research. Explore our range of Büchiglas pressure reactors and contact Mason Technology to discuss your laboratory requirements.
