polyclave – lab pressure reactor

Buchiglas

polyclave – lab pressure reactor

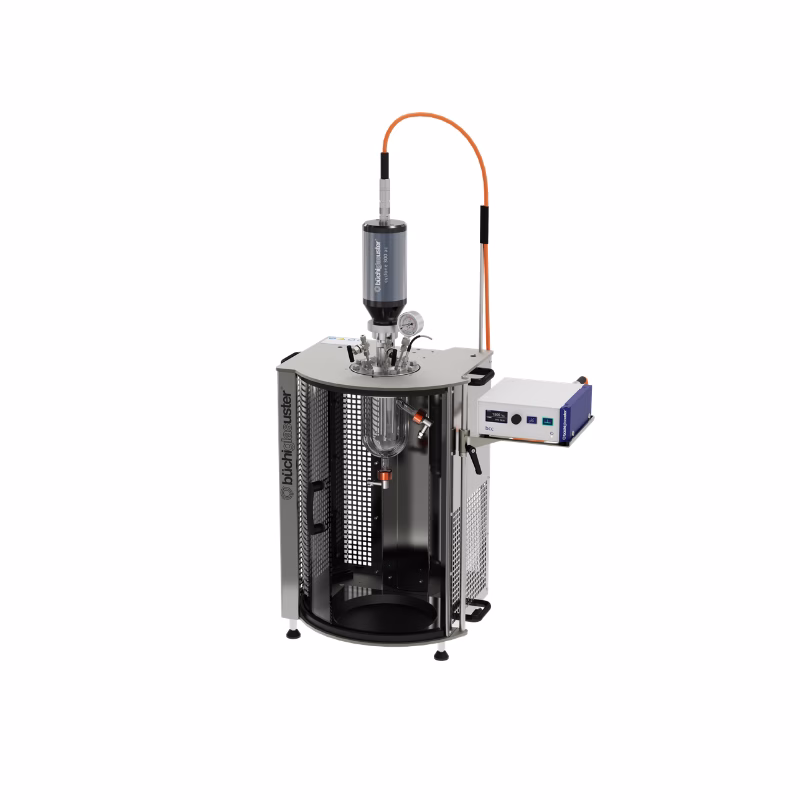

polyclave – laboratory pressure reactor system – comfortable and simple operation

  • Reactor volume: 0.25 to 5.0 liter
  • Pressure: -1 (FV) to +60 / 200 bar
  • Temperature: -20 °C to +250 °C
  • Material: Borosilicate glass 3.3, stainless steel, Hastelloy®

Other materials, pressures & temperatures are available.

The polyclave is a multipurpose pressure reactor system designed for the use of interchangeable glass and steel pressure vessels. Safety features guarantee safe reactions under pressure.

The glass reactors ensure high resistance against acids, while allowing visual process control and monitoring. This is also possible under high pressure by using steel pressure vessels with sight glasses. Various low to high torque magnetic drives ensure efficient mixing and stirring low to high viscosity process media as well as excellent heat transfer.

The modular setup of the Buchiglas polyclave system allows changing or upgrading for new tasks at any time.

With fast action closure and reactor lift it becomes very easy to operate also heavy metal pressure vessels. A wide range of accessories for feeding of liquids, solids, gas and others like catalyst baskets etc. are available – talk to us to define the right setup for your specific need.



Standard polyclave package

  • Safety housing with polycarbonate sliding door for safe operation of glass pressure vessels
  • Pressure vessel in glass, steel / Hastelloy with suitable stirrer shaft, stirrer, baffle, Pt-100, bottom valve depending on vessel type
  • Cover plate with 7 openings and standard setup
  • Swagelok fittings with bursting disc, manometer and 2 valves
  • Stirrer drive cyclone 300 with integrated high torque magnetic coupling, incl. controller cc 300
  • Tools and spare parts



Standard options for polyclave

  • Reactor lifting / lowering device
  • Safety Fast Action Closure for vessel
  • ATEX stirrer drive
  • Metal-free (inert version) with ceramic stirrer drive
  • Electric heating/water cooling
  • Measure and control systems
  • Wide range of accessories
  • 200 bar version



Laboratory pressure reactor applications

  • Hydrogenation reactor
  • Polymerization reactor
  • Synthesis reactor
  • Catalyst testing/evaluation
  • Catalytic reactor
  • Crystallization
  • Chemical research, synthesis
  • Petrochemical research
  • Corrosion Measurement
  • Upstream research
  • Biomass research
  • Biopolymer research
  • Biorefinery research
  • Biofuels research
  • Zeolite synthesis
  • Nanoparticle synthesis
  • Corrosion testing autoclave

Download the Buchiglas Product Overview Brochure
