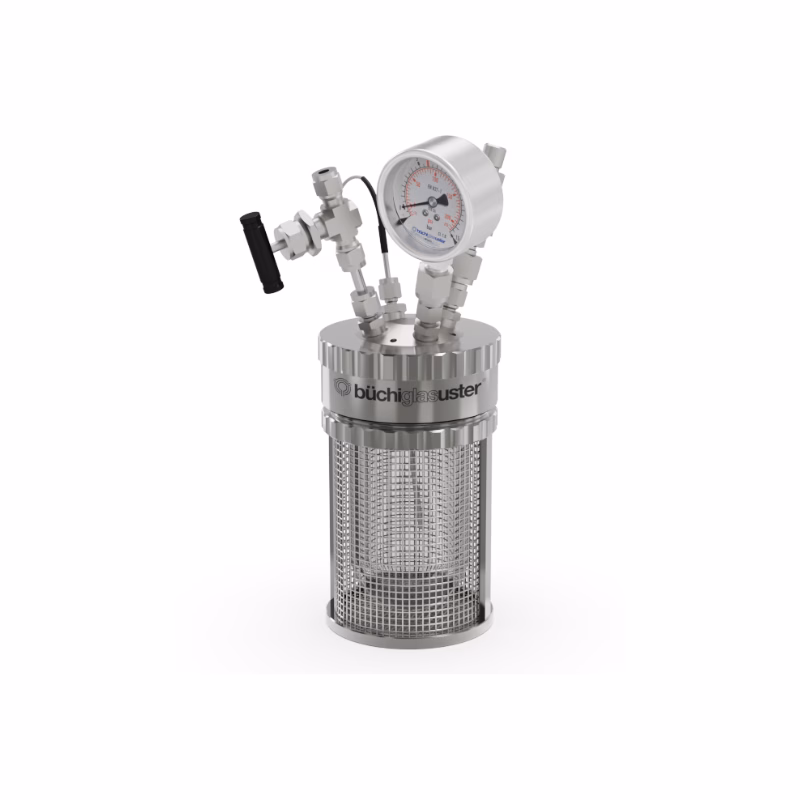

tinyclave steel – small pressure reactor


tinyclave steel – small pressure reactor

tinyclave steel – small pressure reactor

  • Reactor volume: 10 to 25 ml
  • Pressure: -1 (FV) to +10 / 100 bar
  • Temperature: -20 °C to +200 / 300 °C
  • Material: Borosilicate glass 3.3, stainless steel, Hastelloy®, PTFE

Other materials, pressures & temperatures are available.

The Buchiglass tinyclave steel, pressure reactor system is designed for the use of interchangeable pressure vessels in glass, steel, Hastelloy®, Teflon. Safety features guarantee safe reactions under pressure.

The glass pressure reactors in the tinyclave ensure high resistance against acids, while allowing visual process control and monitoring.

A wide range of accessories is available – talk to us to define the right setup for your specific need.

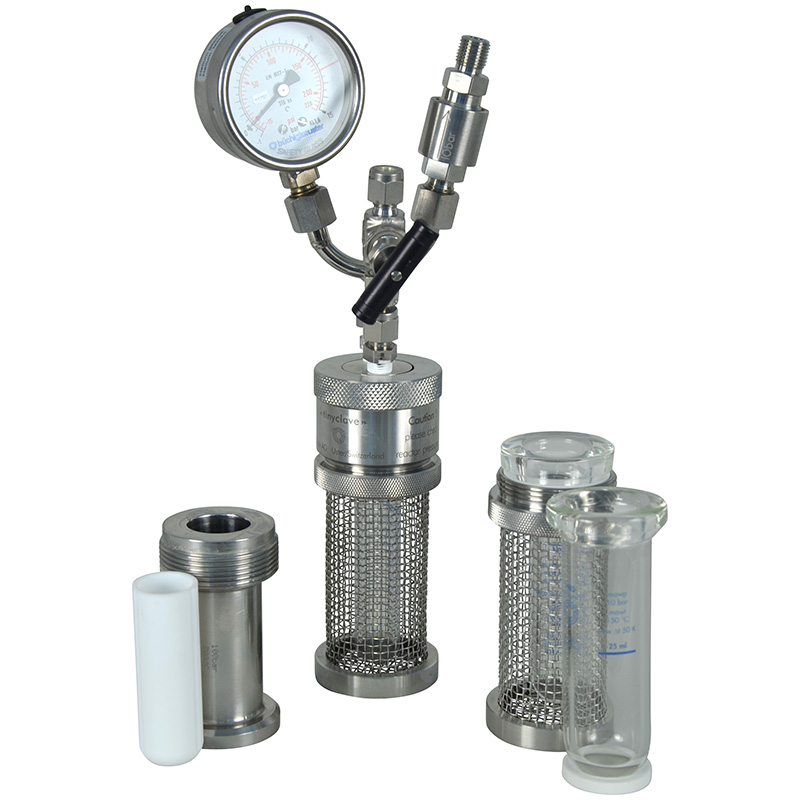

Standard tinyclave steel package

  • Vessel holder with protective mesh
  • Glass pressure vessel
  • Union nut
  • Cover plate with 2 openings and standard setup
  • Swagelok fittings with bursting disc, manometer and 1 valve
  • Tools and spare parts


Small pressure reactor applications

  • Hydrogenation reactor
  • Polymerization reactor
  • Synthesis reactor
  • Catalyst testing/evaluation
  • Catalytic reactor
  • Crystallization
  • Chemical research
  • Petrochemical research
  • Biopolymer Research
  • Nanoparticle synthesis

Download the Buchiglas Product Overview Brochure
