maxiclave® Industrial Pressure Reactor

The Büchiglas maxiclave® Industrial Pressure Reactor offers a reliable and flexible solution for high-pressure and high-temperature process development. Available through Mason Technology, a trusted Irish supplier of Büchi reactor systems, the maxiclave® supports demanding applications across the chemical, pharmaceutical and materials industries. Designed for laboratory-scale industrial research and process evaluation, this compact reactor combines robust construction with versatile operating capabilities. It supports pressures up to 200 bar and temperatures up to 300°C, making it suitable for demanding chemical processes.

The maxiclave® is available in non-stirred and stirred configurations, with interchangeable vessel capacities of 0.5 and 1.0 litres. The maxiclave® drive includes a cyclone 075 dc magnetic stirrer, providing mixing capabilities for industrial process research. In addition, optional corrosion-resistant materials and PTFE inserts allow users to adapt the system to different chemical environments. These features make the maxiclave® suitable for catalyst evaluation, polymer development, hydrogenation and other industrial research applications.

Büchiglas maxiclave® Industrial Pressure Reactor Key Features

• Two reactor configurations: Available as the non-stirred maxiclave® or stirred maxiclave® drive to accommodate different process requirements.
• Flexible reactor capacities: Interchangeable 0.5 and 1.0 litre vessels support small-scale industrial process development and testing.
• High-pressure capability: Operates from full vacuum (-1 bar) up to 200 bar for demanding chemical applications.
• High-temperature performance: Supports temperatures from -10°C to +300°C for a wide range of reaction conditions.

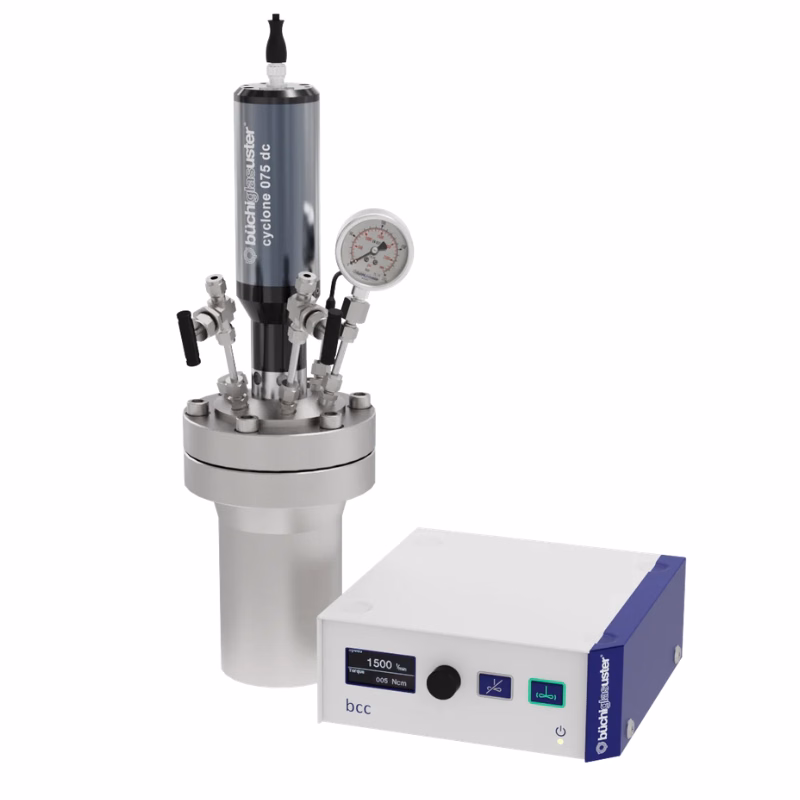

• Magnetic stirring system: The maxiclave® drive features a cyclone 075 dc magnetic stirrer drive with 75 Ncm torque.
• Robust construction: Stainless steel vessels provide durability, while optional Hastelloy® offers additional corrosion resistance.
• Optional PTFE insert: Provides enhanced chemical resistance for processes involving aggressive substances.
• Optional handling stand: Supports convenient handling of the pressure vessel and reactor cover plate.
• Versatile heating options: Can be heated using laboratory hot plates, bath thermostats or electric heating sleeves.
• Industrial research applications: Suitable for catalyst testing, hydrogenation, polymerisation, petrochemical research, biomass processing research and process development.

Support your industrial research and process development with the Büchiglas maxiclave® Industrial Pressure Reactor, supplied by Mason Technology. Its flexible configurations and high-pressure capabilities make it a practical choice for industrial R&D facilities and process development laboratories. Whether your focus is chemical processing, catalyst development or materials research, Mason Technology can help identify the right reactor solution. As a trusted supplier of Büchiglas equipment in Ireland, we connect industrial customers with high-quality reactor systems to support their technical requirements. Contact Mason Technology to explore the available maxiclave® configurations and find the right solution for your application.
